Why Extract Images from ZIP Files?

ZIP archives often contain collections of images, screenshots, design assets, and scanned documents. Automating extraction helps you: - Retrieve images without manually unzipping. - Process large batches of ZIP files. - Build pipelines for AI training, OCR, or archival. - Extract only image files and ignore all others.

ZIP File Processing API

GroupDocs.Parser Cloud SDK for .NET provides a REST-based solution for parsing various file formats, including ZIP archives. It automatically identifies and extracts images stored anywhere inside the ZIP. You may consider visiting the following link to learn more about other Supported Formats.

Prerequisites

  • A GroupDocs Cloud account (Client ID & Client Secret).
  • .NET 6.0+ installed.
  • Visual Studio or compatible IDE.

Install via NuGet

NuGet\Install-Package GroupDocs.Parser-Cloud -Version 25.7.0

Extract Images from ZIP using C# .NET

This section explains the steps on how we can programmatically extract raster images from ZIP files using C# .NET.

Step 1 — Initialize the API

var config = new Configuration("YOUR_CLIENT_ID", "YOUR_CLIENT_SECRET");
var parserApi = new ParserApi(config);

Step 2 — Set ZIP File Info & Options

var fileInfo = new FileInfo { FilePath = "archive.zip" };
var options = new ImagesOptions { FileInfo = fileInfo };
var request = new ImagesRequest(options);

tep 3 — Extract Images

var response = parserApi.Images(request);

foreach (var image in response.Images)
{
    Console.WriteLine($"Image Path: {image.Path}");
}

💡 You can also limit extraction to specific folders inside the ZIP.

Extract ZIP Images using cURL

Alternatively, you may consider extracting ZIP file content using GroupDocs.Parser Cloud and cURL commands. This approach is quite useful when you need a document parse solution to be executed through command line terminal or through batch processing.

Step 1 — Generate Access Token The first step in this approach is to generate a JWT access token based on client credentials.

curl -v -X POST "https://api.groupdocs.cloud/connect/token" \
-d "grant_type=client_credentials&client_id=YOUR_CLIENT_ID&client_secret=YOUR_CLIENT_SECRET" \
-H "Content-Type: application/x-www-form-urlencoded"

*Step 2 — Extract Images from ZIP

curl -v -X POST "https://api.groupdocs.cloud/v1.0/parser/images" \
-H  "accept: application/json" \
-H  "authorization: Bearer {ACCESS_TOKEN}" \
-H  "Content-Type: application/json" \
-d "{ "FileInfo": { "FilePath": "archive.zip", "StorageName": "internal" }, "OutputPath": "internal/output"}"

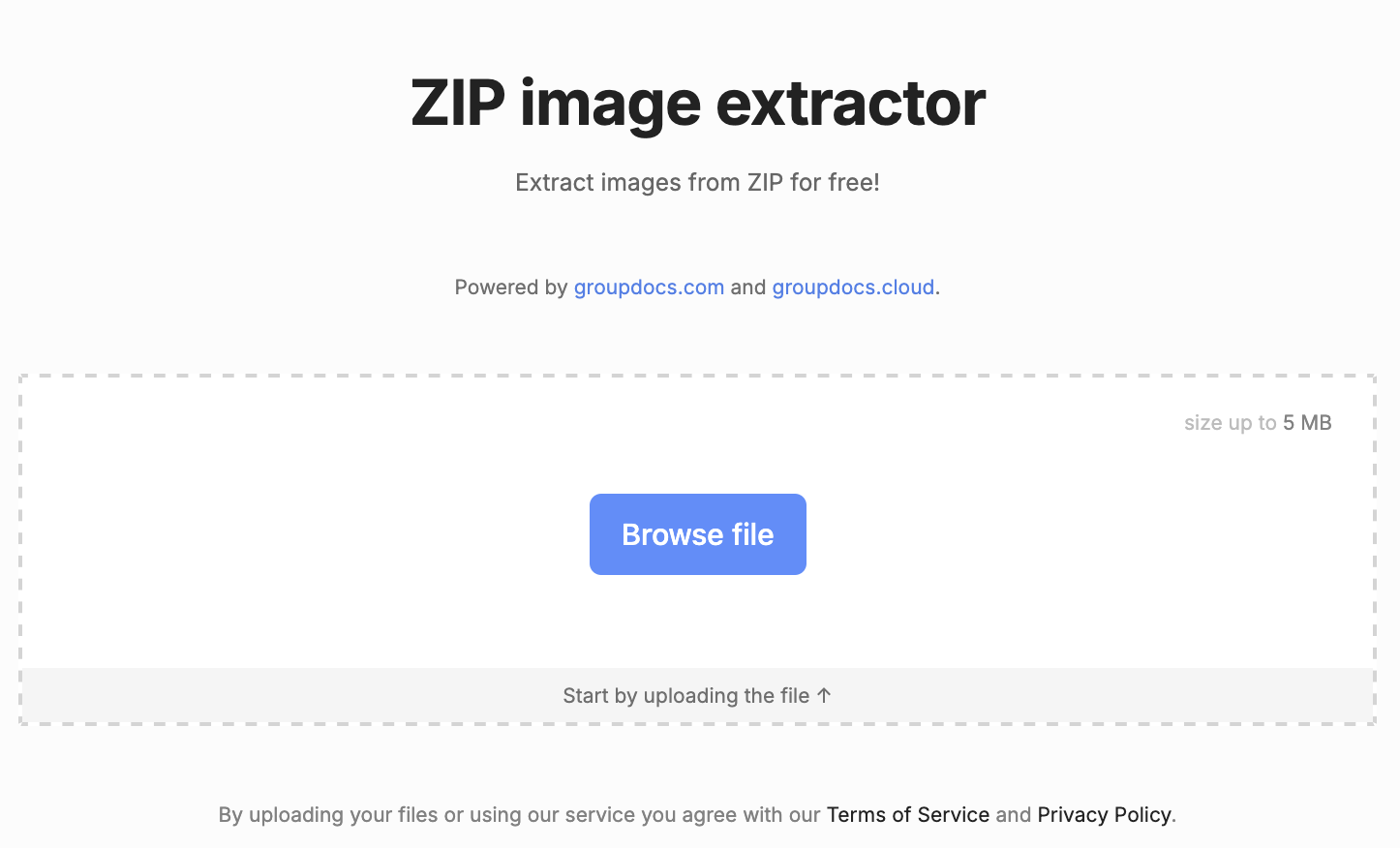

Try the Online ZIP Image Extractor

You can test ZIP image extraction without writing any code using the online tool: ZIP image extractor.

extract zip images

Troubleshooting & tips

  • No images found — verify the ZIP actually contains supported image files (sometimes images are stored inside nested archives or in non-standard formats).
  • Large archives — for very large ZIPs, consider server-side storage and asynchronous processing to avoid timeouts.
  • File paths — relative paths inside the ZIP may include folders; ensure your download logic handles nested directories.
  • Permissions — ensure your API credentials have access to the storage location used.
  • Testing — first test with a small ZIP to confirm behavior before processing production data.

Conclusion

This article explained how to extract images from ZIP archives using GroupDocs.Parser Cloud SDK for .NET. The API provides a simple, efficient, and scalable solution for automated image retrieval from compressed archives.

We highly recommend visiting the following articles to learn more about:

Frequently Asked Questions (FAQs)

1. Can I extract only image files from ZIP?
Yes, the API automatically filters out non-image files.

2. Do I need external ZIP libraries?
No, ZIP handling is built into GroupDocs.Parser Cloud.

3. Can I extract from specific folders?
Yes, you may supply filter options.

4. What image formats are supported?
JPG, PNG, BMP, GIF, and other standard formats found in ZIP archives.

5. Is there a free trial?
Yes. You can create a free account and get 150 monthly API calls.
